Variable Frequency Drives (VFDs): Field Engineering Guide

What Is a Variable Frequency Drive?

A variable frequency drive, also called VFD, is the electronic motor controller that changes the speed of an AC motor by changing the frequency and voltage sent to the motor. It is mainly used with 3-phase induction motors. Engineers use VFDs to control speed, reduce mechanical stress, improve process control and the important things is to save energy in some pump and fan systems.

Introduction

A motor connected direct-on-line runs near one fixed speed. Many machines do not need fixed speed all the time. A pump may need less flow at night. A fan may need lower air volume. A conveyor may need speed control for production.

A VFD gives that control.

Many VFD problems do not start inside the drive electronics. They often come from wrong motor data, poor grounding, long motor cables, bad cooling, wrong acceleration time, wrong control mode or a real mechanical fault in the machine. Good VFD work is not only parameter setting. It is motor, load, wiring, protection and process understanding.

What Is a VFD?

VFD means variable frequency drive. It is also called an AC drive, variable speed drive or adjustable speed drive.

A VFD controls motor speed by changing the motor supply frequency. In many industrial plants, it is used on:

Pumps
Fans
Conveyors
Mixers
Compressors
HVAC systems
Water treatment systems
Process machines

A VFD is not just a starter. A starter starts and stops a motor. A VFD can start, stop, speed up, slow down, protect and monitor the motor.

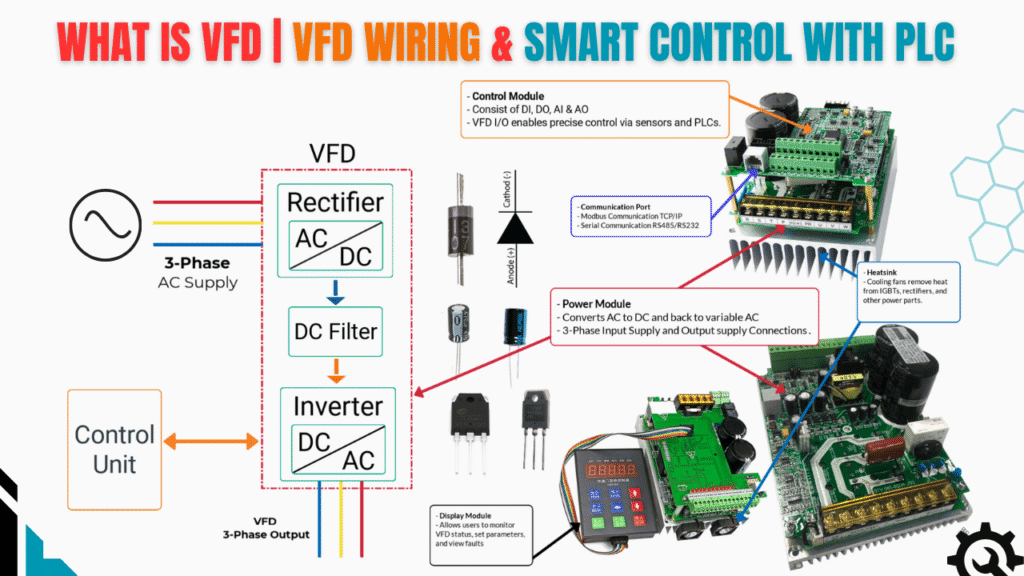

How Does a VFD Work?

A VFD changes fixed AC power into a controlled AC output.

AC supply → Rectifier → DC bus → Inverter → PWM output → Motor

Stage	What it does
AC input	Receives supply power from the plant electrical system
Rectifier	Converts AC into DC
DC bus	Stores and smooths DC voltage using capacitors
Inverter	Converts DC back into controlled AC
IGBT switching	Turns DC on and off very fast
PWM output	Creates a motor voltage pattern that controls speed and torque

PWM means pulse-width modulation. The VFD does not make a perfect sine wave at its output. It switches power devices, usually IGBTs, very fast. The motor reacts to this switched voltage as a usable AC supply.

The drive changes output frequency for speed control. It also changes output voltage so the motor can produce proper magnetic flux and torque.

How a VFD Controls Motor Speed

Motor speed depends mainly on supply frequency and the number of motor poles.

Ns = 120f / P

Where:

Ns means synchronous speed in RPM
f means frequency in Hz
P means number of motor poles

Example:
A 4-pole motor at 50 Hz has:

Ns = 120 × 50 / 4 = 1500 RPM

A real induction motor runs slightly below this speed because of slip. Slip is needed to produce torque. So the motor nameplate may show about 1450 RPM instead of 1500 RPM.

When the VFD reduces frequency, motor speed reduces. When it increases frequency within the allowed range, motor speed increases. The drive also adjusts voltage with frequency so the motor does not become weak or overheated.

VFD Control Modes

Control mode	Speed accuracy	Low-speed torque	Feedback	Setup effort	Common use
V/Hz control	Basic	Low to medium	Not needed	Easy	Fans, pumps, simple conveyors
Sensorless vector	Better	Better	Not needed	Medium	Conveyors, mixers, general machines
Closed-loop vector	High	Strong	Encoder needed	Higher	Hoists, winders, precise speed systems

When to choose each mode

Use V/Hz control when the load is simple and exact speed is not critical.

Use sensorless vector control, when the motor needs better torque at lower speed without an encoder.

Use closed-loop vector control when the process needs accurate speed or torque feedback. The encoder and wiring must be installed correctly.

How to Select and Size a VFD

Do not select a VFD from horsepower alone. Motor full-load amps, or FLA, is often more useful because the drive must supply current.

Check these items before selecting a drive:

Factor	Why it matters
Motor voltage	Must match the drive output rating
Motor FLA	Drive current rating must be suitable
kW or HP	Gives basic motor size
Motor frequency	Usually 50 Hz or 60 Hz
Motor speed	Needed for correct motor data
Load type	Affects torque demand
Overload need	Heavy loads may need higher overload capacity
Speed range	Low-speed running may need special motor cooling
Ambient temperature	May affect drive rating
Altitude	May require derating
Enclosure	Must suit the panel or site area
Braking	Needed for high-inertia or fast-stop loads
Cable length	May require output filters
Harmonics	May require line reactor, choke or filter
Communication	PLC network may be needed
Motor type	Standard or inverter-duty motor

VFD & Soft Starter Sizing Calculator

Motor Full Load Current (FLA) Calculator

Simple sizing example

Assume a 15 kW, 400 V, three-phase induction motor. The motor nameplate shows 29 A FLA. This value is only an example assumption.

A good first check is:

Select a 400 V class drive.
Check that the drive continuous output current is equal to or higher than 29 A.
Check overload rating for the load.
Check cooling, enclosure, ambient temperature and altitude.
Check braking and cable length needs.
Confirm the final model using the drive manufacturer rating table.

If the application is a heavy conveyor or mixer, the drive may need a higher rating than a pump or fan of the same motor power.

[Supporting article: VFD sizing guide]

Constant Torque vs Variable Torque

Load type	Typical machines	VFD selection point
Variable torque	Centrifugal pumps, fans	Torque falls at lower speed. Often easier duty
Constant torque	Conveyors, mixers, positive-displacement pumps	Torque demand stays high at low speed
High-inertia load	Large fans, centrifuges	Deceleration and braking need attention
Heavy starting load	Crushers, extruders, loaded conveyors	Check overload and starting torque

Duty type matters because the VFD must supply enough current during starting, acceleration and low-speed running.

VFD Wiring, Grounding and EMC

A good VFD installation separates power wiring from control wiring.

Basic wiring areas are:

Incoming power to the VFD
VFD output to the motor
Grounding conductors
Digital inputs for start, stop and reset
Analog input for speed reference
Communication cable for PLC or HMI

Keep motor cables away from analog and communication cables. Use shielded motor cable where required. Terminate the shield as the drive manual shows. Poor shield connection can create EMI problems.

Bad grounding can cause nuisance trips, unstable analog signals, PLC communication faults and motor bearing problems. Follow the drive manual, plant electrical rules and local code.

Safety: isolate power, apply lockout/tagout, wait for DC bus discharge time and verify absence of voltage before touching drive terminals. Do not work inside an energized VFD unless your site safety procedure allows it and you are qualified.

Free IEC Cable Sizing Calculator

Motor Cable Length and Output Filters

Motor cable length matters because a VFD output is not the same as a sine-wave supply. PWM switching has fast voltage rise. Long cables add capacitance. This can increase reflected-wave voltage at the motor terminals and stress motor insulation.

VFD Reflected Wave Voltage spikes motor terminals

Long cables can also increase common-mode current and EMI.

Possible output devices are:

Device	Purpose
Output reactor	Reduces current spikes and softens the output waveform
dV/dt filter	Reduces fast voltage rise at the motor
Sine-wave filter	Makes the output closer to a sine wave

There is no single safe cable length for all VFDs. The limit depends on the drive, motor, carrier frequency, cable type, insulation system and manufacturer rules.

Pulse Width Modulation PWM voltage pulses compared with the resulting sinusoidal motor current waveform.

VFD Commissioning Checklist

Use this checklist before running the motor under load.

Read the drive manual.
Check motor nameplate data.
Verify incoming voltage.
Verify motor connection, star or delta where applicable.
Check grounding.
Check motor cable shield termination.
Enter motor voltage.
Enter motor FLA.
Enter motor frequency.
Enter motor RPM.
Select control mode.
Set command source, keypad, terminals or PLC.
Set speed reference, analog or network.
Set minimum and maximum frequency.
Set acceleration and deceleration time.
Run auto-tune if the drive and application require it.
Check motor rotation at low speed.
Test with no load where possible.
Test under load.
Check running current.
Save or record final parameters.
Record fault history if faults appeared.

[Supporting article: VFD commissioning checklist]

Common VFD Parameter Mistakes

Mistake	Possible result
Wrong motor voltage	Weak torque or motor heating
Wrong motor FLA	Poor overload protection
Wrong motor frequency	Wrong speed and flux
Wrong motor RPM	Poor vector control performance
Acceleration too short	Overcurrent trip
Deceleration too short	DC bus overvoltage trip
Minimum frequency too high	Machine may start too fast
Maximum frequency too high	Overspeed risk
Wrong command source	Drive does not start
Wrong speed reference	Drive runs at wrong speed
Wrong control mode	Poor torque or unstable running
Auto-tune skipped	Poor control in vector mode

Never change random parameters only to clear a fault. Find the reason for the trip first.

VFD Troubleshooting

Start with two questions.

What happened?
Trip, no start, wrong speed, noise, overheating or communication fault.

When did it happen?
Startup, acceleration, steady running, deceleration or stopping.

Then separate the cause:

Electrical cause
Mechanical cause
Programming cause
Installation cause

Fault category	Possible causes	First checks
Overcurrent	Short acceleration, jammed load, wrong motor data, motor fault	Motor current, load condition, acceleration time, motor wiring
Overvoltage	Fast deceleration, high-inertia load, braking problem	DC bus trend, decel time, braking resistor setup
Undervoltage	Low supply, loose connection, supply dip	Incoming voltage, terminals, upstream protection
Overload	Load too high, wrong FLA, poor cooling	Motor FLA setting, running current, motor temperature
Ground fault	Cable damage, motor insulation fault, moisture	Motor cable, insulation test by qualified person
Overtemperature	Hot panel, blocked fan, poor ventilation	Panel temperature, drive fan, air path

Do not invent manufacturer fault codes. ABB, Siemens, Schneider, Danfoss, Allen-Bradley and Yaskawa use their own Faults code systems. For the dedicated/specific VFD model, Always Check the correct manual for the exact faults code type and recommendation.

[Supporting article: VFD troubleshooting guide]

Why a VFD Trips During Acceleration

A trip during acceleration often means the drive current rose too high.

Check in this order:

Is the machine jammed or loaded too heavily?
Is acceleration time too short?
Is motor FLA entered correctly?
Is the correct control mode selected?
Is motor wiring correct?
Is current limit set correctly?
Is the motor or cable faulty?

Do not increase the current limit before checking the machine. The drive may be protecting the motor and load from a real fault.

Why a VFD Trips During Deceleration

During deceleration, the motor can act like a generator. Energy flows back into the VFD DC bus. If the drive cannot absorb or remove that energy, DC bus voltage rises and the drive may trip on overvoltage.

Common fixes include:

Increase deceleration time
Add or check braking resistor
Check braking unit settings
Use a drive with regenerative capability where required

The correct choice depends on the drive and machine inertia.

Motor Overheating at Low Speed

A motor may run hotter at low speed because its shaft-mounted fan moves less air. This is a problem when the load still needs high torque at low speed.

Check:

Load torque at low speed
Motor current
Motor cooling
Minimum speed setting
Motor insulation and duty rating

A forced cooling fan or inverter-duty motor may be needed. Not every motor overheats at low speed, but the risk must be checked.

VFD Harmonics and Power Quality

Most standard VFDs draw nonlinear current from the supply. A common six-pulse rectifier can create harmonic current. Harmonics can affect transformers, generators, cables and other plant equipment.

Possible mitigation methods include:

Line reactor
DC choke
Passive harmonic filter
Active harmonic filter
Multi-pulse or low-harmonic drive, where suitable

IEEE 519 is often used when checking harmonic limits at the point of common coupling. Do not assume every VFD violates a limit. Measure or calculate for the actual system.

[Supporting article: VFD harmonics and harmonic filters]

VFD and PLC Integration

A PLC can control a VFD in several ways.

Method	Use
Digital inputs	Start, stop, direction, reset
Analog 0-10 V	Simple speed reference
Analog 4-20 mA	Better noise tolerance for longer runs
Modbus RTU	Serial communication
EtherNet/IP	Ethernet control and monitoring
PROFINET	Common with Siemens systems

Basic signal flow:

PLC → start command

PLC → speed reference

PLC → start command

PLC → speed reference

VFD → running status

VFD → actual speed

VFD → current

VFD → fault status

For network control, confirm command source, speed source, scaling, watchdog setting and fault reset method.

[Internal link: PLC controller guide]
[Supporting article: VFD PLC communication]

VFD vs Soft Starter vs DOL Starter

Feature	DOL starter	Soft starter	VFD
Starting control	Very limited	Good	Very good
Speed control	No	No normal running speed control	Yes
Torque control	Low	Medium	High
Energy saving	Application dependent	Limited	Possible on pumps and fans
Harmonics	Low	During start mainly	Present during operation
Cost	Low	Medium	Higher
Common use	Simple motors	Reduced-voltage starting	Speed control and process control

A VFD is not always needed. If the motor only needs a soft start and fixed speed, a soft starter may be enough.

VFD Applications

VFDs are common in pump systems because flow can be controlled by speed instead of only throttling valves.

Fans are also good VFD applications because small speed changes can reduce power demand in many systems.

Conveyors use VFDs for smooth starts, speed matching and process control.

Mixers may need controlled speed for product quality, but torque demand must be checked.

Compressors need careful selection because compressor type affects torque, unloading and control.

Water treatment plants use VFDs for pumps, blowers and dosing systems.

Manufacturing machines use VFDs when speed must match production steps.

Can a VFD Damage a Motor?

Yes, a VFD can damage a motor if the system is poorly selected or installed.

Possible causes include:

PWM voltage stress
Reflected waves on long cables
Bearing currents
Low-speed overheating
Wrong motor parameters
Continuous overload
Poor grounding

Prevention methods include correct motor data, proper grounding, shielded cable, suitable cable length, output filters where needed, good cooling and correct overload settings.

Practical Field Lessons

Do not select a drive from HP alone. The drive supplies current, so motor FLA matters.
Do not use one cable-length rule for every VFD. Check the drive and motor manuals.
Do not hide an overcurrent trip by raising limits. The machine may be jammed.
Do not ignore motor nameplate data. Vector control depends on correct motor values.
Do not treat every trip as a drive failure. Many faults come from wiring, load or settings.

FAQ

What is a VFD?

VFD is the motor controller that changes AC motor speed by changing output frequency and voltage.

How does a VFD control motor speed?

It change the frequency and then send to the motor with required frequency. Lower frequency gives lower speed. Higher frequency gives higher speed within the allowed range.

Can a VFD run an induction motor?

Yes. 3-phase induction motors are the most common motors used with VFDs.

How do you size a VFD?

Use motor voltage, motor FLA, load type, overload need, environment, braking and cable length. Confirm the final drive from the manufacturer table.

Should VFD sizing use FLA or horsepower?

Use both, but FLA is critical because the drive output current must match the motor and load duty.

What causes VFD overcurrent?

Short acceleration time, jammed load, wrong motor data, motor fault, wiring fault or wrong control mode can cause overcurrent.

What causes VFD overvoltage?

Fast deceleration or high-inertia load can push energy back into the DC bus and raise voltage.

When is a dV/dt filter needed?

A dV/dt filter may be needed when motor cable length, motor insulation or drive output conditions create voltage stress. Check the drive manual.

Can a VFD be controlled by a PLC?

Yes. PLC can control it by digital signals, analog speed reference or communication networks such as Modbus RTU, TCP/IP or PROFINET depend on VFD type. Different VFDs support different protocols to communicate with PLC and DCS.

What is the difference between V/Hz and vector control?

V/Hz is simpler and controls voltage with frequency. Vector control gives better torque and speed control, but needs better motor data and setup.

Allen Bradley PLC Controllers Guide

Power Factor Improvement Guide

What is Power Factor?
