NEC Wire Size & Breaker Calculator

choosing the correct wire size and breaker rating prevents from electrical fires, equipment damage, and code violations. This calculator applies National Electrical Code requirements to determine safe conductor sizes and overcurrent protection for any electrical circuit.

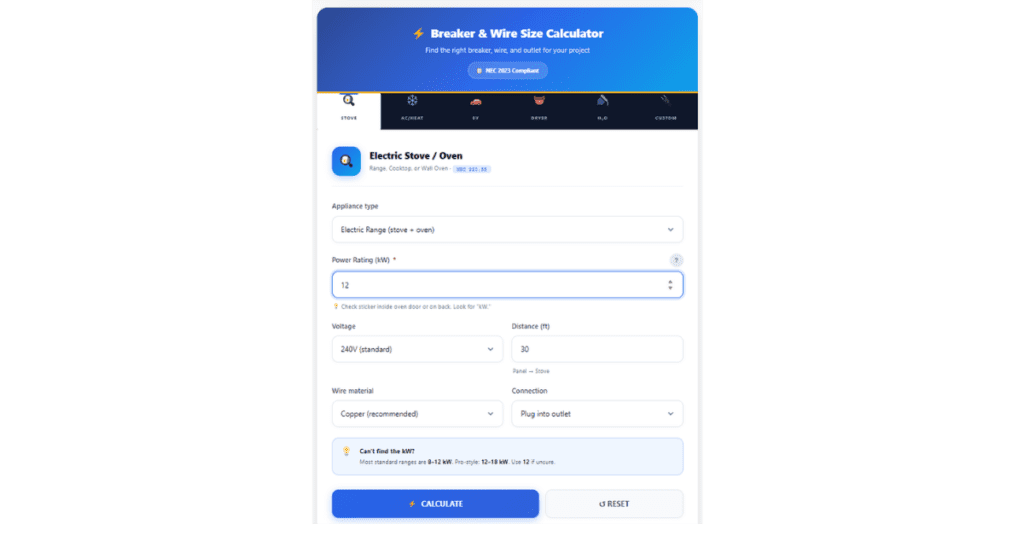

How to Use This Calculator

Enter your load current in amperes. This is the actual operating current found on equipment nameplates or calculated from watts divided by voltage.

Select your voltage level. Choose 120V for standard outlets, 240V for large appliances, or 208V/480V for commercial applications.

Enter one-way circuit length in feet. Measure from the breaker panel to the load location.

Choose conductor material. Copper costs more but requires smaller wire sizes. Aluminum saves money on long runs but needs larger gauges.

Specify if the load runs continuously. Motors, HVAC systems, and always-on equipment require the 125% safety factor.

Engineer Tip: Always measure circuit length before purchasing wire. Estimating often results in buying too little or excessive voltage drop.

How the Calculator Works

The calculator performs five critical checks in sequence.

First, it calculates minimum ampacity. For continuous loads, it multiplies your load current by 1.25, as per NEC 210.19(A)(1). A 20 Amps continuous load requires wire rated of 25 amps minimum.

Second, it applies temperature correction. Wire ampacity decreases in hot environments. At 110°F ambient temperature, 75°C wire loses approximately 12% capacity.

Third, it checks adjustment factors. Multiple conductors in one conduit generate heat. Four to six current-carrying conductors reduce ampacity to 80% of table values.

Fourth, it calculate voltage drop using actual wire resistance, circuit length and load current. It keeps voltage drop under 3% for branch circuits.

Fifth, it selects the breaker. The breaker must protect the wire without nuisance tripping using standard ratings from NEC 240.6(A).

Field Warning: Online calculators that skip temperature correction produce undersized wire. This creates fire hazards that pass inspection initially but fail under full load.

Understanding NEC Wire Sizing

Wire size depends on current flow and heat tolerance of insulation.

American Wire Gauge numbers work backwards. Smaller numbers mean larger wire. 10 AWG carries more current than 14 AWG.

Each gauge size changes wire diameter by approximately 26%. Selecting wire size from 12 AWG to 10 AWG, basically increasing cross-sectional area of wire by 60%.

Ampacity tables in NEC 310.16, list maximum current for each wire size. These values are assumed considering standard ambient temperature i.e. 30°C, and three or fewer current carrying conductors.

A wire with 12 AWG copper conductor with 75°C insulation, can handles 20 amps under ideal conditions. The same wire at 50°C ambient drops to 17.2 amps after correction factors.

Common Mistake: Using wire ampacity tables directly without applying correction or adjustment factors. This oversizes breakers relative to actual wire capacity.

Breaker Sizing Requirements

The breaker protects wire, not equipment. It must trip before conductor temperature exceeds insulation ratings.

NEC 240.4 required breaker to compare wire ampacity rating after calculations, considering the correction factor. let say, A wire with 17.2 amps adjusted ampacity needs a 15 amps breaker maximum.

Standard breaker sizes include 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, and 200 amps.

When calculated load falls between standard sizes, round down for wire protection. If calculations show 23 amps required, use a 20 amps breaker and upsize the wire.

Motor circuits follow different rules under NEC 430. Motor branch circuit protection can reach 250% of motor full load current for inverse time breakers.

Best Practice: Size the wire first with all correction factors, then select the largest standard breaker that doesn’t exceed adjusted wire ampacity.

The 125% Continuous Load Rule

Continuous loads operate for three hours or longer without interruption. Normally, HVAC systems, refrigeration, commercial lighting and data center equipment considered as continuous.

NEC 210.19(A)(1) requires conductors sized at 125% of continuous load current to survive in case of high current. Let say, 16 Amps continuous load required minimum wire rated of 20 amps for safe operation.

Breakers follow the same rule as per NEC 210.20(A), Like A 16 amps continuous load needs a 20 amps breaker..

This safety margin prevents nuisance tripping and prevent the breaker thermal characteristics. Like a 20 amps breaker loaded continuously at 20 amps, will trip eventually, even though the load matches the rating.

Non-continuous loads like power tools or periodic equipment don’t require this multiplier.

Engineer Tip: When in doubt, treat loads as continuous. The small wire cost increase prevents field callbacks for nuisance tripping.

Voltage Drop Calculations

Voltage drop reduces available voltage at the load. Motors produce less torque, lights dim, and electronics malfunction when supply voltage drops excessively.

NEC recommends maximum 3% drop on branch circuits and 5% total from service entrance to load.

Voltage drop equals 2 x K x I x L / CM. K is the resistance constant (12.9 for copper, 21.2 for aluminum), I is current, L is one-way distance, and CM is circular mils.

A 20 amps load at 240V over 100 feet with 12 AWG copper drops 9.8 volts. That’s 4.1%, exceeding the 3% recommendation. This circuit needs 10 AWG.

Long runs to outbuildings, subpanels, or remote equipment require larger wire than ampacity calculations alone suggest.

Field Warning: Undersized wire that passes inspection causes real problems. Motors overheat, LED drivers fail prematurely, and sensitive electronics reset randomly.

Copper vs Aluminum Conductors

Copper conducts electricity better than aluminum. For the same ampacity, aluminum requires two gauge sizes larger.

A 20 amps circuit uses 12 AWG copper or 10 AWG aluminum. Both have the same current capacity with proper terminations.

Aluminum costs less per foot but requires anti-oxidant compound and specific torque values. Improper aluminum terminations cause high resistance connections that start fires.

Use aluminum for long feeder runs where cost savings justify proper installation procedures. A 200 amps, 200-foot run saves hundreds of dollars with aluminum.

Stick with copper for branch circuits, residential work, and anywhere installation quality control is uncertain.

Never mix aluminum and copper directly. Use approved transition connectors or devices rated for both.

Common Mistake: Installing aluminum wire with devices rated for copper only. The connection overheats and fails, usually years after installation.

Temperature Correction Factors

Wire ampacity decreases as ambient temperature increases. Ampacity tables assume 30°C surrounding the conductor.

Attics in summer reach 60°C easily. Outdoor conduit in direct sunlight hits 70°C. Wire in these locations needs significant derating.

NEC Table 310.15(B)(1) provides correction factors. At 50°C ambient with 75°C insulation, multiply ampacity by 0.75. Wire that normally carries 20 amps drops to 15 amps.

Conduit on rooftops requires correction for direct sunlight. Add 17°C to ambient temperature before selecting correction factors.

Engine rooms, boiler areas, and industrial ovens create high ambient temperatures. Always measure actual conditions rather than assuming standard temperatures.

Engineer Tip: Take infrared temperature readings of existing conduits during peak conditions. This reveals actual operating temperatures for similar new installations.

Conductor Adjustment Factors

Multiple current-carrying conductors in one raceway generate cumulative heat. Each wire produces heat the others must dissipate.

NEC Table 310.15©(1) requires adjustment when more than three current-carrying conductors share a raceway. Four to six conductors use 80% of ampacity values. Seven to nine conductors drop to 70%.

Grounding conductors and neutrals carrying only unbalanced current don’t count. A single-phase circuit with hot, hot, neutral, and ground contains two current-carrying conductors.

Nonlinear loads create third harmonic currents in the neutral. When neutral current exceeds hot conductor current, count the neutral as current-carrying.

Field Warning: Installers often ignore adjustment factors until inspection. Discovering twelve conductors in a conduit need 50% derating means replacing all wire with larger sizes.

Wire Size Reference Chart

Values shown are for 75°C terminations. Apply all correction and adjustment factors for actual installations.

Real-World Sizing Examples

Example 1: Residential Water Heater

A 4500-watt, 240-volt water heater operates continuously.

Load current equals 4500W / 240V, which gives 18.75 amps.

Apply 125% for continuous operation. Minimum ampacity is 18.75 x 1.25, resulting in 23.4 amps.

From the ampacity table, 12 AWG copper at 75°C handles 25 amps. Circuit length is 40 feet. Voltage drop equals 2.96 volts or 1.23%. This passes the 3% recommendation.

Use 12 AWG copper with a 20 amps breaker.

Safety Note: Water heaters must have disconnect within sight or lockable breaker per NEC 422.31.

Example 2: EV Charger Installation

A Level 2 EV charger requires 40 amps circuit at 240V for 9.6 kW charging.

Minimum ampacity equals 40 x 1.25, which is 50 amps. Garage location is 80 feet from panel.

8 AWG copper handles 50 amps at 75°C. Voltage drop is 2.1%. Acceptable.

Conduit runs through attic where temperature reaches 55°C in summer. Temperature correction at 55°C for 75°C wire equals 0.71.

Adjusted ampacity equals 50 x 0.71, which is 35.5 amps. This fails to meet the 50 amps requirement.

Use 4 AWG copper with 85 amps rating. After correction, 85 x 0.71 equals 60.4 amps. This works with a 50 amps breaker.

Best Practice: EV chargers should have dedicated circuits with no other loads.

Example 3: Three-Phase Motor

A 15-horsepower, 480-volt, three-phase motor shows 18 amps full load current on the nameplate.

From tables, 12 AWG copper handles 25 amps. Six conductors in conduit require 80% adjustment.

Adjusted ampacity equals 25 x 0.80, which gives 20 amps. Still adequate.

Motor branch circuit protection can be 250% of FLA for inverse time breakers. Maximum breaker equals 18 x 2.5, which is 45 amps. Use 40 amps breaker per standard sizes.

Wire size is 12 AWG copper. Breaker is 40 amps.

Common Sizing Mistakes

Using wire ampacity without corrections. Raw table values only apply at 30°C with three or fewer conductors. Real installations need derating.

Forgetting the continuous load rule. HVAC and always-on equipment must use 125% multiplier for both wire and breaker.

Ignoring voltage drop. Code-compliant wire can still cause equipment problems if voltage drop exceeds recommendations.

Mixing up one-way and round-trip distance. Voltage drop formulas use one-way length. Measuring total wire needed gives twice the correct value.

Oversizing breakers to avoid tripping. The breaker protects wire from overheating. Oversized breakers allow wire damage before tripping.

Applying aluminum correction to copper. The resistance constants differ significantly. Using the wrong value gives dangerous results.

Not accounting for conduit in sunlight. Exposed outdoor conduit runs 17°C hotter than ambient temperature.

Safety Note: Every mistake listed has caused equipment failures or fires in actual installations.

Troubleshooting Guide

Breaker trips immediately: Check for dead short with multimeter. Verify correct breaker size. Confirm wire connections are tight.

Breaker trips after running: Calculate actual load current. Measure breaker temperature with infrared thermometer. Check for additional circuits sharing neutral.

Voltage measures low: Measure voltage at panel first. Calculate voltage drop based on circuit length and load. Check all connections for tightness.

Wire feels hot: Measure current with clamp meter. Check conduit temperature. Verify all conductors were counted for adjustment factors. Inspect terminations for tightness.

Equipment operates intermittently: Low voltage from undersized wire causes electronics to reset. Measure voltage under full load. Check neutral connections.

Frequently Asked Questions

What wire size do I need for a 30 Amps breaker?
10 AWG copper or 8 AWG aluminum for 75°C terminations without correction factors.

Can I use 12 AWG wire on a 25 Amps breaker?
Yes, if the load is non-continuous and no correction factors apply. 12 AWG copper handles 25 amps at 75°C.

What size breaker do I need for 8 AWG wire?
Maximum 40 amps for copper, 35 amps for aluminum at 75°C.

How far can I run 12 AWG wire?
A 20 Amps, 240V circuit should stay under 60 feet. Calculate voltage drop for your specific situation.

Does the neutral wire need to be the same size as hot wires?
Yes, in most cases. The neutral carries the same current as hot conductors in single-phase circuits.

What happens if wire is too small for the breaker?
Wire overheats before the breaker trips. Insulation melts, creating fire hazards.

Do I need to upsize wire in conduit?
Apply adjustment factors based on number of current-carrying conductors. Four to six conductors need 80% derating.

How do I calculate wire size for a motor?
Use nameplate full load amps. Follow NEC Article 430 for motors.

Can I use 14 AWG wire on a 20 Amps breaker?
No. 14 AWG copper maximum is 15 amps. This violates NEC 240.4(D).

Should I use copper or aluminum wire?
Copper for branch circuits and short runs. Aluminum for long feeders where cost savings justify careful installation.

What does continuous load mean?
Operation for three hours or more without interruption. HVAC, refrigeration, and commercial lighting qualify.

How do voltage drop and ampacity relate?
Separate requirements. Wire must meet ampacity for heat management AND voltage drop for equipment operation.

What size wire for 60 amps?
6 AWG copper or 4 AWG aluminum at 75°C. Verify correction factors don’t require larger sizes.

Can I run different wire sizes in the same conduit?
Yes. Calculate conduit fill using actual cross-sectional area of all conductors present.

What breaker size for a refrigerator?
Nameplate gives maximum overcurrent protection. Typically 15 or 20 amps. Use dedicated circuit.
