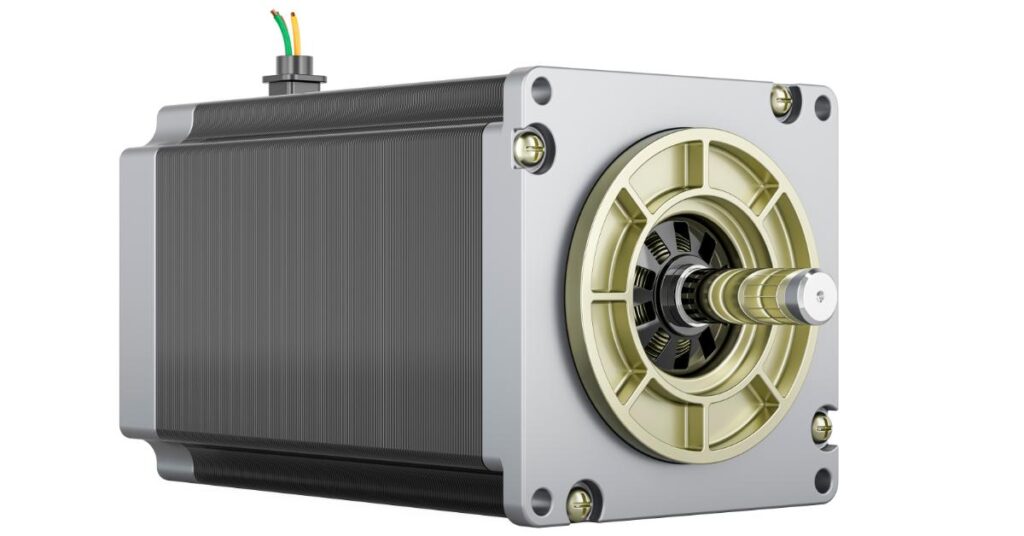

DC Motor: How It Works, Types, Speed Control, and Troubleshooting

A DC motor is more than a machine that rotates, apply voltage, current creates the torque and as the motor rotate and speeds up, back EMF pushes against the supply. Adding more load then motor slows down, its back EMF drops, and current rises to produce more torque to maintain speed. Once you understand this concept, most DC motor behavior starts to make sense.

What a DC Motor Actually Does

A DC motor turns electrical energy from the DC supply, battery or rectified AC into shaft rotation. Current in the coil sitting in the magnetic field creates a force, and enough of those forces around the shaft give rotation.

DC motors stay common because they’re direct to control, change voltage, change speed. That’s why they still run conveyors, actuators, pumps, power tools, and battery equipment, even with AC drives and BLDC taking over new designs.

How a DC Motor Works

1. DC voltage hits the motor terminals.
2. Field current (or permanent magnets) sets up a magnetic field.
3. Armature current flows through the rotating winding.
4. That current, inside the field, creates a force on each conductor.
5. Added up, those forces produce torque on the shaft, and the rotor turns.
6. The commutator and brushes switch which windings carry current, keeping the force in one rotational direction.
7. As speed builds, the motor generates its own opposing voltage, back EMF.

Fleming’s left-hand rule gives direction fast: first finger for magnetic field, second for current, thumb for force.

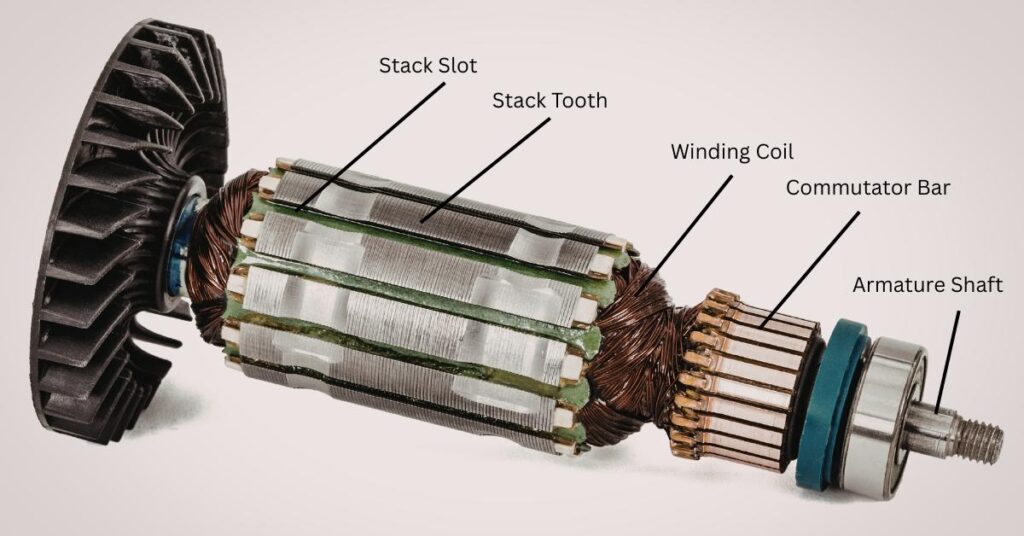

DC Motor Construction and Parts

Brushes and commutators need the most attention on a brushed motor. Everything else usually lasts if not abused.

How Torque Is Produced in DC Motor

F = B × I × L. B is field strength, I is current, L is conductor length in the field. Add that up around the armature and you get torque, or practically: T ∝ Φ × Ia, torque proportional to flux times armature current. More current at the same field means more torque, why current spikes when a motor starts or takes on load.

Back EMF in DC Motor: How It Works

While it spins, the armature acts like a small generator, producing back EMF that opposes supply voltage. Eb = V − Ia × Ra (Ra is armature resistance, usually under 1 ohm). Armature current is whatever’s left after back EMF cancels most supply voltage.

At startup, back EMF is near zero, so only the small armature resistance limits current, why starting current runs several times higher than running current. As speed builds, back EMF rises and current drops.

The chain worth remembering: load increases → speed drops → back EMF drops → armature current rises → torque rises → the motor pushes back. That’s basic physics self-correcting, not intelligence. Push load too far and current climbs past thermal limits, where overheating and nuisance trips start.

Types of DC Motors

Series: field and armature carry the same current, so field strength grows with load, giving very high starting torque (cranes, starters). Never run one unloaded, it can overspeed and destroy itself.

Shunt: The field winding is connected in parallel with the armature, so its strength remain almost constant. This keeps the motor speed  steady as the load changes, making it the good choice for machine tools and fans.

Compound: combines series and shunt fields. Cumulative compound gives good starting torque with better speed stability than series, used in elevators and heavy conveyors.

Separately excited: The field winding has its own power supply, separate from the armature. This allow you to control the field and armature current independently, which is Helpful in larger drives where precise speed and torque control are required.

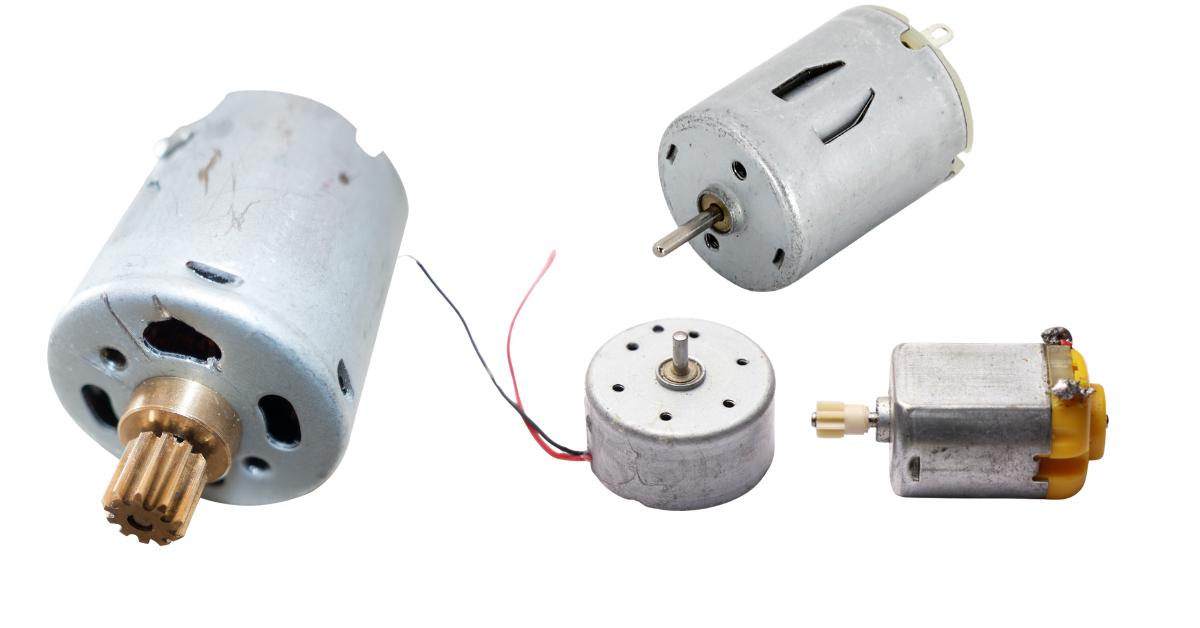

PMDC: permanent magnets replace the field winding, simple and compact, common in power tools and small pumps. No electrical field control, and magnets can weaken slightly with age or heat.

Brushed vs BLDC: A brushed motor uses brushes and a mechanical commutator to switch the current. It’s simple, but the brushes deteriorate and can spark. A BLDC motor does the switching electronically using rotor position feedback, such as Hall sensors. So, there are no brushes. It can run cooler and at higher speeds, but it needs a controller or driver. So if  BLDC motor is not rotating, then might be controller or driver has issue. You need to check that because it mostly happend due to controller not just the motor only.

Table: Type of DC Motor Comparison

Torque-Speed Behavior and Starting Current

Speed and current move opposite ways as load changes, torque and current move together. More load means lower speed, lower back EMF, more current, more torque.

Starting current can run 5 to 10 times running current, since back EMF is near zero at standstill. Controllers manage that startup current, electronically or, on older gear, by stepping resistance out as speed builds.

DC Motor Speed Control

Armature voltage control: lower the armature voltage, speed settles lower. Works below base speed, common on separately excited and PMDC motors.

Field weakening: on motors with a controllable field, reducing field current forces the motor to spin faster to reach the same back EMF, giving speed control above base speed, though torque drops as field weakens. Doesn’t apply to PMDC (no field winding) or series motors (field tracks load).

PWM control: switches full supply voltage on and off thousands of times a second, varying the duty cycle (percent on-time). The motor sees close to an average voltage equal to duty cycle times supply voltage. Unlike a resistor burning off the difference as heat, PWM wastes little energy, the real reason it took over on small motors.

DC Motor Applications

• High starting torque: cranes, hoists, vehicle starters
• Steady speed under load: conveyors, machine tools, fans, pumps
• Precise positioning: robotics, CNC axes, actuators
• Battery powered: power tools, small appliances
• Traction: electric/hybrid vehicles, some rail systems

DC Motor vs AC Motor

Neither is universally better. Fixed-speed pumps usually suit AC, fast torque response or battery operation usually favors DC/BLDC.

DC Motor Troubleshooting

Check supply, wiring, controller, and load before condemning the motor. A motor that bench-tests fine is common, the fault is often upstream.

Brush sparking is rarely one cause. Worn brushes lose flush contact and arc, a rough commutator does the same, and overload current beyond the contact area’s capacity will spark even with good parts.

A series motor running too fast is urgent. Losing its load or field current can let it run away and damage the winding. Check the field circuit first.

DC Motor Maintenance

Check brush length against minimum, free movement in the holders, and uneven wear pointing to a commutator issue. The commutator should look smooth, evenly darkened, not pitted. Feel for roughness or play in the bearings, motor isolated.

Blocked ventilation runs the motor hotter for the same load. Loose terminals from vibration cause voltage drop and heating that looks like a motor fault. A clamp meter reading against nameplate current catches a lot without opening the motor. A motor mounted where brushes are hard to reach turns a five-minute check into a bigger job.

How to Select a DC Motor

The power rating alone doesn’t tell you if a motor is the right fit for your application or not. Check the voltage, speed, starting and running torque, current, duty cycle, load type, working environment, maintenance access, controller and feedback needs, and the mounting and shaft type that meet your requirement and design for best fit.

Skipping duty cycle is a common mistake. A motor sized fine for continuous light load can still overheat if it’s starting and stopping often, since starting current happens more often than average readings suggest.

Worked Example: What Load Does to a Real Motor

Example. A small PMDC motor, 24 V, armature resistance 0.8 ohm, running light at 1.5 A. Back EMF: Eb = 24 − (1.5 × 0.8) = 22.8 V.

Load increases, speed drops, back EMF falls to 20 V. New current: Ia = (24 − 20) / 0.8 = 5 A, more than tripled. If rated 3 A continuous, 5 A is overload and heats up faster than it sheds heat. Illustrative numbers, always use actual nameplate values for a real diagnosis.

Which DC Motor Type Should You Pick

FAQ

What is a DC motor? A machine that turns direct current into rotation, using force created when current flows through a conductor in a magnetic field.

How does a DC motor work? Armature current in a magnetic field creates torque, and a commutator/brushes or electronic switching (BLDC) keep the shaft turning one way.

What are the main types? Series, shunt, compound, separately excited, PMDC, and BLDC, trading off starting torque, speed regulation, and control complexity.

Why is starting current high? Back EMF is near zero at standstill, so only the low armature resistance limits current till speed builds.

What is back EMF? The voltage the spinning armature generates, opposing supply voltage, rising with speed and limiting current once running.

Why does a DC motor slow down under load? Speed and back EMF drop, more current flows to make torque, settling at lower speed, higher current.

Why does a DC motor spark? Usually worn brushes, a rough commutator, wrong spring pressure, or overload current beyond the contact area’s capacity.

DC motor vs BLDC? Brushed switches current mechanically via a commutator. BLDC switches electronically, no brushes, cooler running, but needs a controller.

Load, controller condition, and supply voltage explain most complaints before it ever needs to come apart. Check those three first.
